Horizontal Directional Drilling Equipment

Horizontal Directional Drilling Machines
Built for Real Underground Work.

Compact HDD rigs, pit-launched directional drills and trenchless equipment for fiber, gas, water, cable and underground utility installation.

EXPLORE HDD MACHINES →GET A PROJECT RECOMMENDATION

4T / 8T / 16TProject-Matched Machines

CompactUtility Installation

MatchedRods, Heads & Reamers

GlobalDelivery & Support

CHOOSE BY DISTANCE

How Far Do You Need to Drill?

10–30M

Compact Projects

4T configurations are for straight, horizontal pit-to-pit boring only. Confirm pipe size and ground conditions.

50–80M

LY-12L · 8T HDD

A reference configuration for urban utility work. Suitability depends on pipe size, geology, tooling and bore path.

UP TO 150M

LY-16L · 16T HDD

Professional configuration for longer crossings and higher pullback requirements.

PROJECT-BASED HDD SELECTION

Find the Right HDD Machine

Start with the actual job — drilling distance, pipe diameter, application and ground conditions. LIYO will help determine the machine, tooling and power configuration.

01 · DISTANCE

Drilling Distance

Tell us the required single-crossing length, burial depth and available work area.

02 · DIAMETER

Pipe / Bore Diameter

Tell us the pipe outside diameter. Final bore size depends on reaming and ground conditions.

03 · APPLICATION

What Are You Installing?

Fiber · HDPE Water · PVC Sewer · PE Gas · Electrical Conduit · Road Crossing

04 · GROUND CONDITIONS: Soft Soil · Clay · Sand · Gravel / Mixed Ground · Rock

ZHENGZHOU LIYO MACHINERY EQUIPMENT CO., LTD manufactures compact horizontal directional drilling (HDD) equipment for trenchless underground construction. Our HDD machine range is designed for fiber-optic conduit, PE gas pipe, water pipe, electrical cable and road-crossing projects, with configurations selected according to bore length, final diameter, geology, working space and required pullback force.

Choose by job, not by guesswork

Find the Right HDD Machine

Start with bore length, final diameter, ground conditions and available working space. We configure the machine around the project.

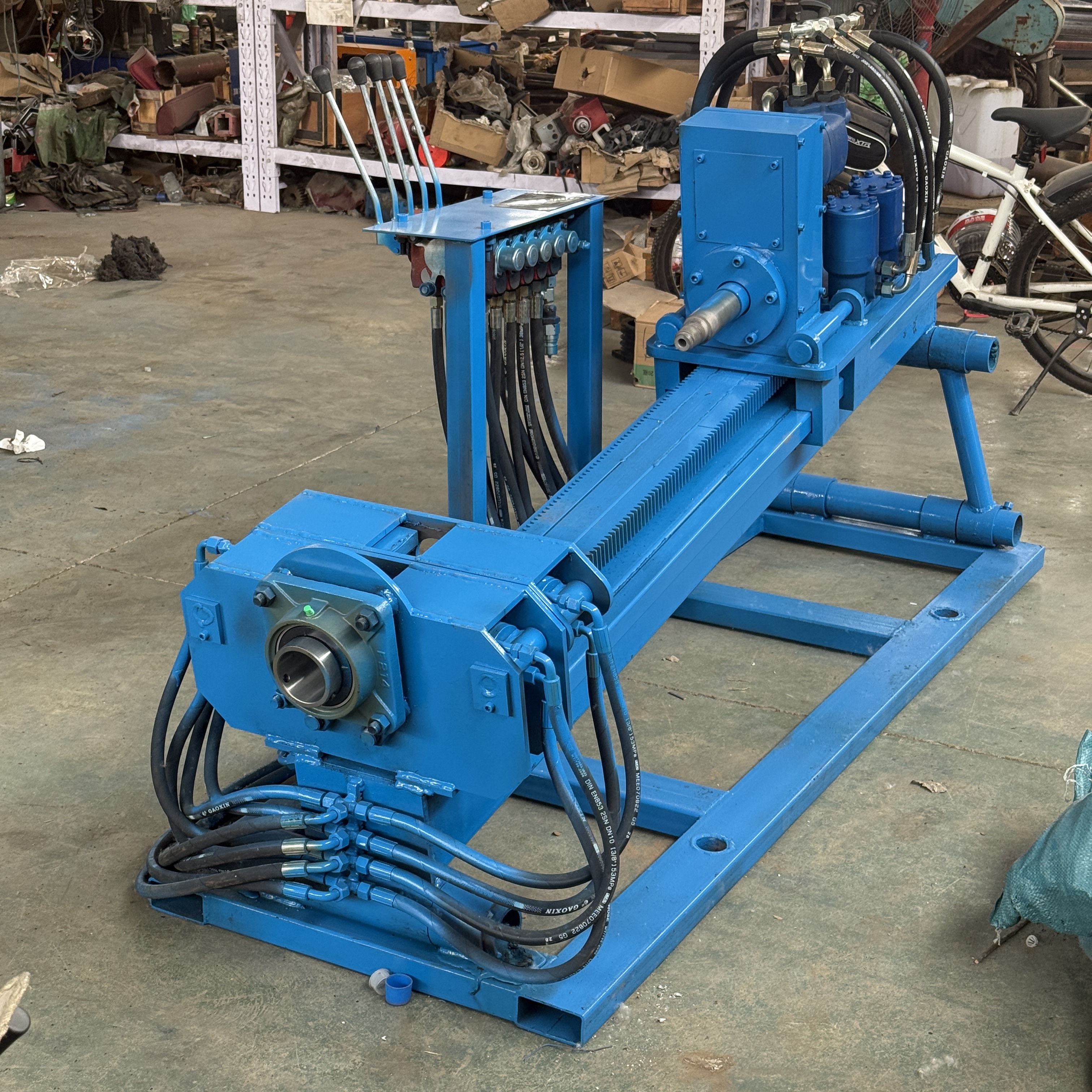

Blue LIYO LY-12L split-type 8T drilling machine

COMPACT UTILITY HDD

LY-12L · 8T

Compact split-type HDD for urban utility work, short crossings and tight jobsites.

8TPullback Class

50–80mTypical Range

Φ50×1mDrill Rod

OptionalLocating System

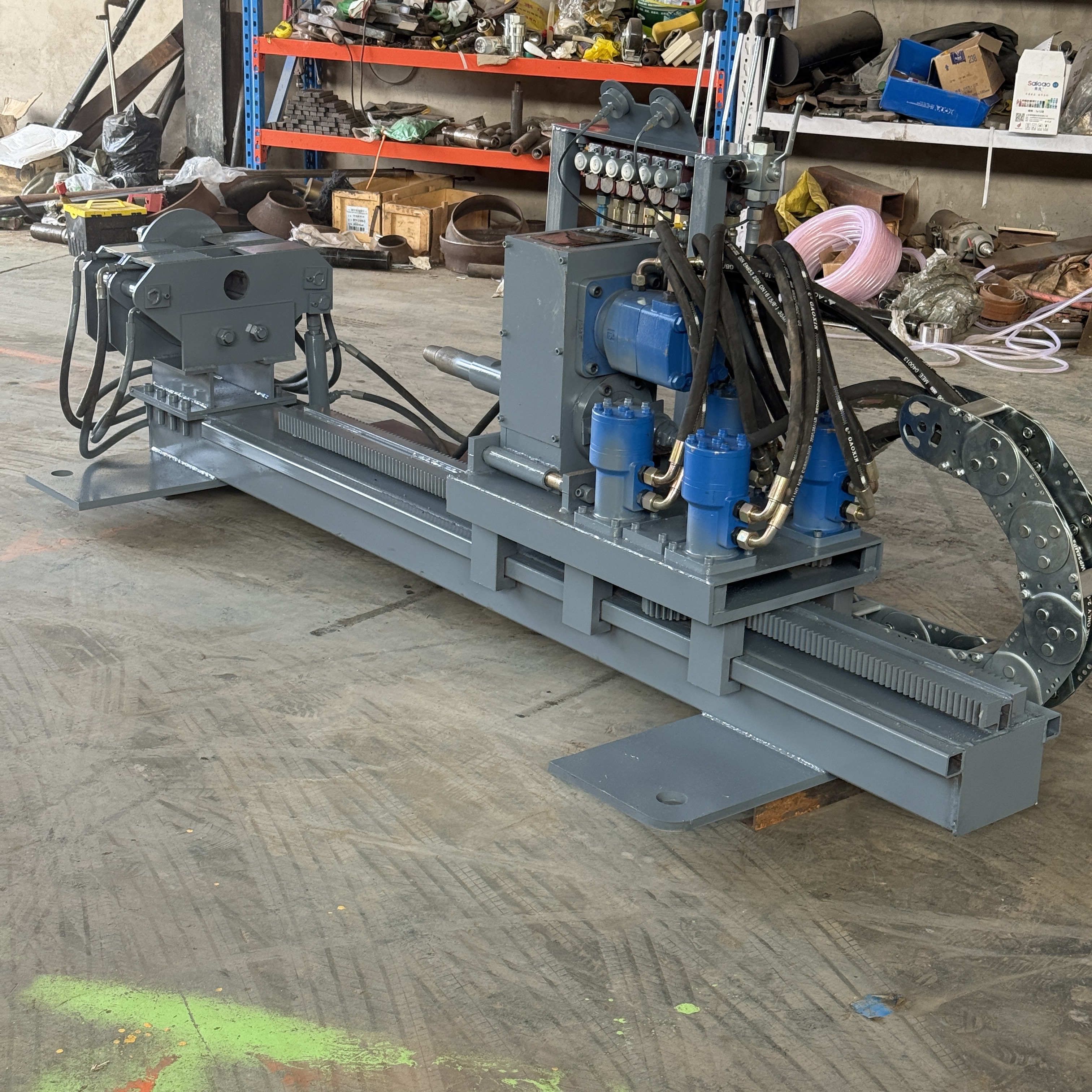

Grey LIYO LY-16L drilling machine in the factory

PROFESSIONAL HDD

LY-16L · 16T

More pullback force for longer guided crossings, gas, water and utility installation.

16TPullback Class

Up to 150mTypical Range

75 HPPower Station

GuidedCompatible

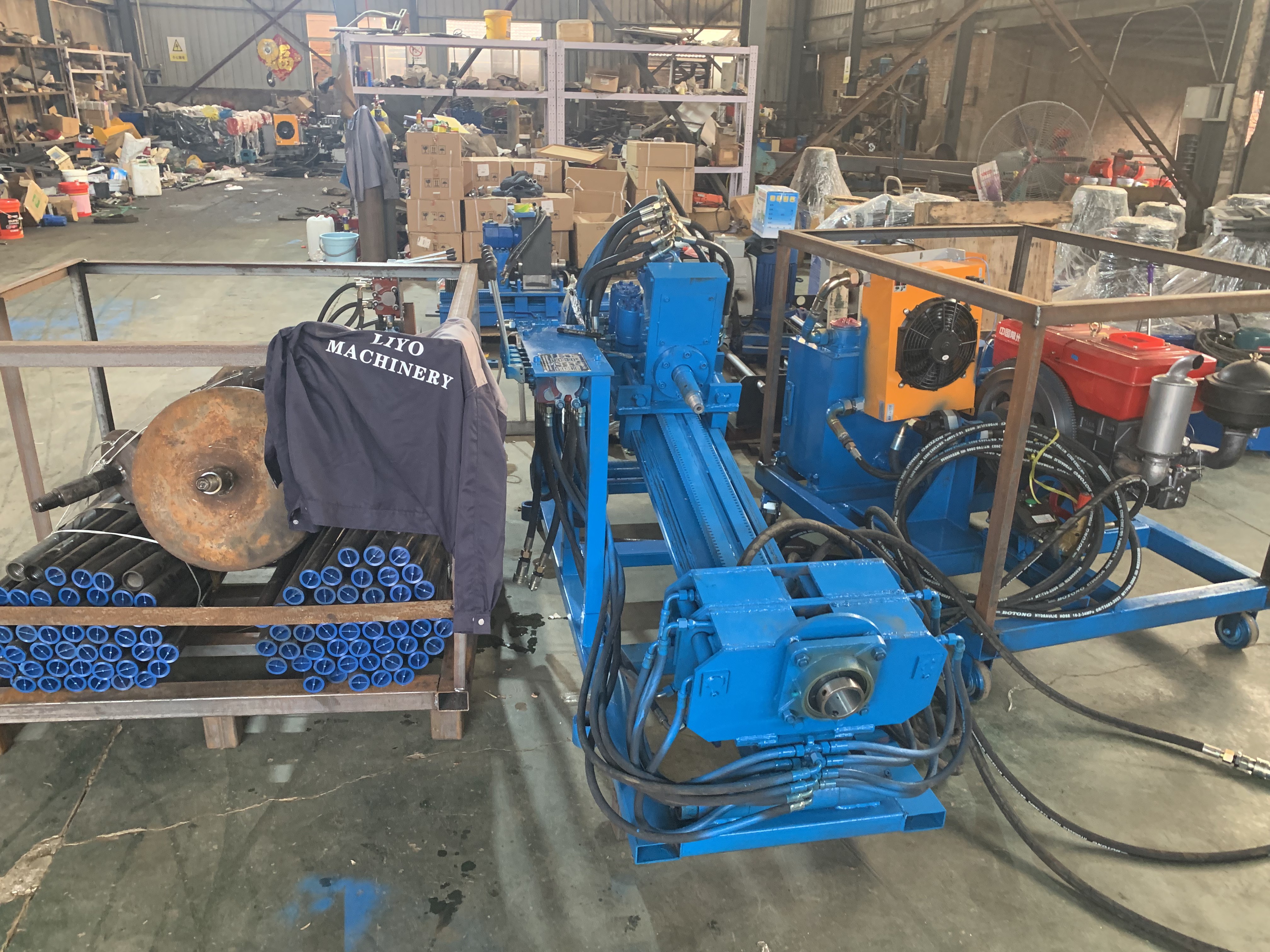

LIYO split drilling machine with drill rods, tooling and separate power unit

TIGHT JOBSITE

Pit-Launched Drill

Compact boring configuration for excavation pits, road crossings and restricted urban work areas.

CompactFootprint

ModularDesign

1m RodEasy Handling

ProjectConfigured

Why LIYO HDD

Compact Equipment. Practical Engineering.

The right HDD should fit the bore, the ground, the jobsite and the way your crew actually works.

Compact by Design

Split-type systems reduce transport size and make setup easier in congested urban areas.

Built Around the Project

Configuration based on distance, final diameter, geology, pipe type and available power.

Complete HDD Solution

Rig, rods, pilot heads, reamers, hydraulic power and guidance-compatible tooling.

Factory Support

Configuration advice, operation videos, spare parts and remote technical assistance.

Applications

One HDD Platform. Multiple Underground Jobs.

Fiber Optic & Telecom

Install conduit beneath roads and developed areas with minimal surface disruption.

Gas Pipeline

PE gas pipe installation for urban and municipal networks.

HDPE Water Pipe

Trenchless underground water and utility pipeline installation.

Road Crossing

Cross existing roads without full open-cut excavation.

Quick Selection

Which HDD Machine Do You Need?

Distance figures are configuration references, not guaranteed drilling capacity. Final selection depends on pipe OD, bore diameter, geology, tooling, bore path and pullback load.

Model	Pullback Class	Typical Distance	Rod	Best For
LY-12L	8T	50–80m	Φ50 × 1m	Fiber, cable, small pipe
LY-16L	16T	Up to 150m	Project configured	Gas, water, longer crossings
Pit-Launched	Project based	Short–Medium	Configurable	Tight urban pits

Complete System

More Than an HDD Machine.

Drill Rods

Compact rods and project-matched connections.

Pilot Heads

Soil tools and guidance-compatible pilot configurations.

Reamers

Final-hole enlargement based on pipe diameter and geology.

Power Units

Electric, gasoline or diesel hydraulic configurations.

Project Qualification

Tell Us the Job. We’ll Recommend the Machine.

Bore Length

How far do you need to drill?

Final Diameter

What pipe or conduit are you installing?

Ground

Soil, clay, sand, gravel or rock?

Jobsite

Urban, road crossing, field or pit?

Configuration

We match rig, tooling and power system.

HDD Buyer Guide

Frequently Asked HDD Questions

MODEL SELECTION

8T or 16T HDD machine?

The right model depends on bore length, final pipe diameter, geology, pullback resistance and available working space. LIYO configures the machine around the actual project.

GUIDED DRILLING

Do I need an HDD locating system?

LIYO 8T and 16T machines support guided drilling with a compatible locator, sonde, housing and steering pilot head. The electronic locating system is optional unless included in your quotation. The 4T family is for straight horizontal boring only.

GROUND CONDITIONS

Can HDD drill without water or mud?

Dry drilling may suit some soft soil or clay conditions. Rock, gravel and mixed ground require a project-specific tooling and circulation review; water alone does not make a standard setup suitable for rock.

Planning an Underground Drilling Project?

Send bore length, pipe diameter, geology and destination. We’ll recommend an HDD configuration and prepare a factory quotation.
